Light Weight Mini 15KM 800MHz TTL Drone Wireless Video Data Link
1. Fast details and feature of Drone Wilress Video Data Link
---Long range more than 15km in LOS, 200meters-500meters in NLOS
---Lowest RF power 25dBm and power consumption TX 5W RX 5W
---Support IP video output and bidirectional TTL serial data
---The uplink and downlink data link transmission rates can be
adjusted proportionally(2D3U,3D2U,4D1U)
---Optional Bandwidth(3MHz/5MHz/10MHz/20MHz)
---TDD OFDM wireless transmission technology
---Optional frequency 800MHz,1.4GHz,2.4GHz
---Dimension 88x55x17mm Weight N.W.:110g N.W.:140g(included
antenna)
---Duplex Transmitting Rate is 3-8Mbps
---Support Point to Point and Point to Multi-Point in 1-4 TX to
1RX, or 1TX to 1-4 RX. For example: Three drones to one GCS, Three
GCS to one drone
---Dual antenna diversity design to make the signal transmission
quality more stable, and high receiving sensitivity
2. Description of Drone Wilress Video Data Link

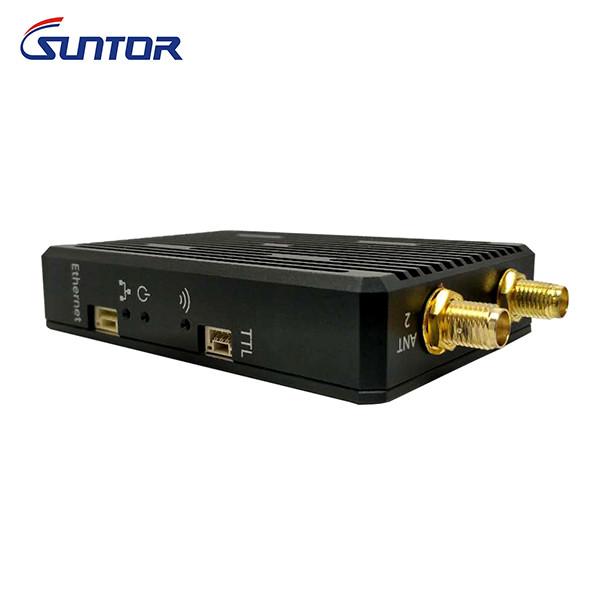

CD15NMT is the latest miniaturized and functional wireless transmission
equipment.
It adopts TDD wireless transmission technology and dual antenna
diversity design to make the signal transmission quality more
stable.
The device can support bidirectional transmission of network data
and TTL serial data at the same time.
3. Specification of Drone Wilress Video Data Link
Hardware
| RF | Frequency | 2.4G(2401.5-2481.5MHz) 1.4G(1427.9-1447.9MHz) 800M(806-826 MHz) |
| RF Power | 25dBm±2 |
| Receivng sensitivity | 2.4G(1Mbps):20MHz -99dBm 10MHz -102dBm5MHz -104dBm 3MHz
-106dBm1.4G(1Mbps):10MHz -103dBm 5MHz -106dBm 3MHz
-108dBm800M(1Mbps):10MHz -103dBm 5MHz -106dBm 3MHz -108dBm |
| Antenna | Double Antenna | SMA Type |
| Serial Port | TTL *1 | Baud rate 115200 |
| Power | consumption | 5V power supply the consumption maximum in 850mA±15%. |
| 9~13V | optional |
| Working temperature | -25℃~60℃ |
Wireless
| Anti-interference | Frequency hopping | Support automatic frequency hopping in the range of frequency |
| Retransmission configuration | | Select whether to retransmit according to different data carried |
| Transmitting mode | Transmission mode | Single antenna transmission, single antenna receiving / single
antenna transmitting, dual antenna receiving |
| Data link | Master-slave data bidirectional communication, dynamically
adjusting rate based on wireless data |
| Access | PTP;PTMP |
| Bandwidth | 2.4GHz | 3MHz/5MHz/10MHz/20MHz |
| 1.4GHz | 3MHz/5MHz/10MHz |
| 800MHz | 3MHz/5MHz/10MHz |
| Rate | | Single node supports up to 30Mbps, adaptive average distribution
system rate |
| Encryption | | Support user configuration layer 2 encryption to turn off And encryption (ZUC, SNOW3G, AES three encryption options are
optional) |
| Modulation | | QPSK,16QAM,64QAM |
| Latency | Air latency | Delay from node-central node transmission <10ms |
| Start delay | entral node/slave node boot delay <15s |
| Network Start | Time <1min |
