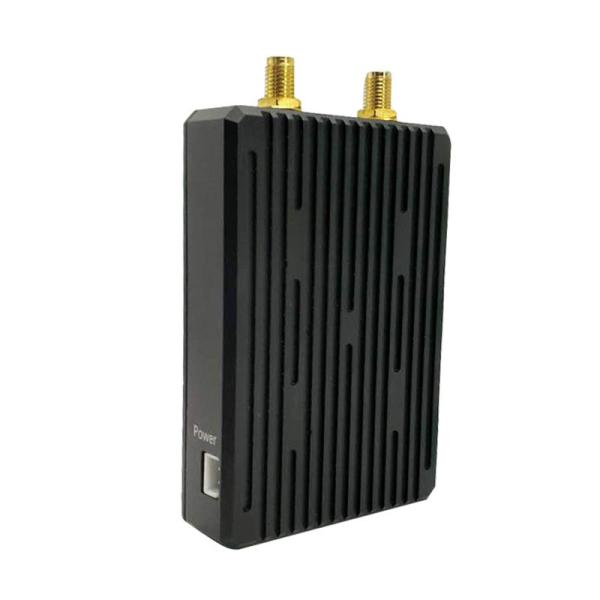

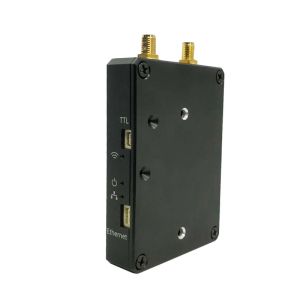

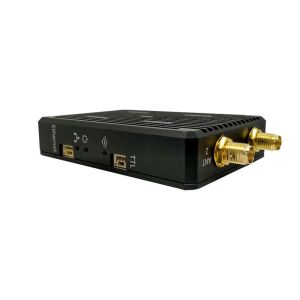

CD15NMT-mini Drone Video Transmitter & Receiver

CD15NMT-MiNi User Manual.pdf

1. Introduction

1. 110 Grams Weight
2. Point to Multi-Point Mode
3. Dual Antenna Design
4. Up to 30Mbps Data Rate
5. 1.4GHz Frequency Range
6. AES128 Security Protection
7. 15KM Air to Ground Transmission Distance

2. Features

• TDD OFDM wireless transmission technology;
• Optional frequency 800MHz,1.4GHz,2.4GHz;
• Dimension 88x55x17mm Weight N.W.:110g N.W.:140g(included antenna);
• Duplex Transmitting Rate is 3-8Mbps;
• Support Point to Point and Point to Multi-Point in 1-4 TX to 1RX, or 1TX to 1-4 RX. For example: Three drones to one GCS, Three GCS to one drone;
• Dual antenna diversity design to make the signal transmission quality more stable, and high receiving sensitivity;
• Long range more than 15km in LOS, 200meters-500meters in NLOS;
• Lowest RF power 25dBm and power consumption TX 5W RX 5W;
• Support IP video output and bidirectional TTL serial data;

3. Parameter

4. Application

This device can be applied to the use of intelligent unmanned terminals such as drones, unmanned ships, unmanned ships, and robots. This device can transmit standard Ethernet data, TTL serial port data, supports wide voltage power supply, and is widely used for network video signal transmission in drones, unmanned ships, unmanned vehicles, airships, target drones, paramotors, robots and other fields. control signal transmission. It is also suitable for portable use and is suitable for on-site video evidence collection by law enforcement personnel, emergency deployment, rescue scenes, navy, air force, police, army and other military projects.
