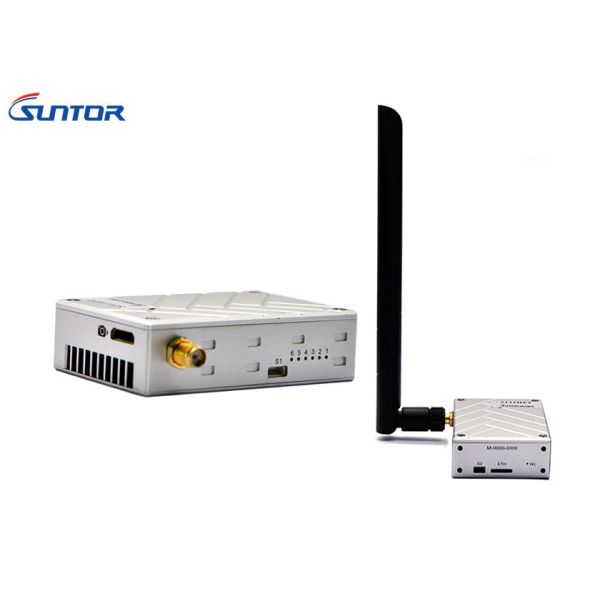

SBUS / PPM / TTL video duplex data wireless hd transmitter with high gain antenna

ST11HPT Specs.pdf

Brief Desscription:

• Full HD 1080P
• less than 25ms latency
• 2.4GHz (2.402-2.478 GHz)
• Air to ground 8-12km transmission distance
• Video Input/Output: High Definition Multimedia Interface
• Small size: 72*47*19mm
• Lightweight: Tx 94g / Rx 94g

Features

• Working Temperature: -40 - +85°C
• Transmitting Range: Air to ground 10km
• Frequency Range 2.4GHz (2.402 - 2.478 GHz) COFDM
• Transmitting Power: 1000mW
• Frequency Bandwidth: 2Mhz/20MHz Adjustable
• Support AES encryption
• Duplex Data Transmit: Support SBUS/PPM/TTL

The small size and ultra-low power consumption make the ST11HPT transmitter ideal for UAV installations, enabling true long range HD quality transmission from these increasingly popular devices for the first time. Optional lightweight, low power consumption amplifiers are also available for even greater range capability.

Parameters

Suntor was founded in 2006 as a professional wireless Ad-Hoc/IP Mesh communication products and solutions provider. We support customers to achieve more efficient and safer

wireless communication in Public Safety, Emergency, Energy, Transportation, Utilities, Commercial and other industry verticals.

Suntor has a leading technical team with more than 16 years experience in wireless communication. Suntor employ highly efficient, dynamic self-organizing and destruction-resistant tactical network technology to make end user "Stay Connected Anywhere".

Suntor Provide:

Video Transmitter for UAV / UGV / USV / ROV and Drone

IP Mesh Radio for Handheld / Manpack / Vehicle and Unmanned System

DMR / Tetra Two-way Radio in HF / VHF / UHF Frequency Range

LTE Hybrid Radio and Private LTE Radio
