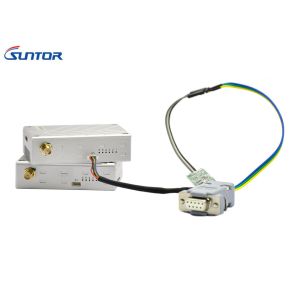

Low Latency Drone Video Transmitter for UAV 1080P HD Multimedia Sender

CD05HPT Drone Video Transmitter & Receiver Specifi...

1. Description

CD05HPT is a Economy mini High Definition Multimedia Interface Video and Data transmission COFDM system for UAV. It support HD1080P video. It develops H.264+H.265 coding&decoding technology to achieve Utra-high resolution(1080P), long distance(air to ground 5km) and low delay(12-25ms) transmission. The system supports (data&image) communication, adjustable video resolution, bit rate output with the TPlayer software. It can realize the soft decoding with low delay. Meanwhile this SUNTOR series products have small size, light-weight, low consumption, high stability and high sensitivity. They are suitable various environment of different application.

2. Features

• Low delay time less than 25ms
• Lightweight, 94g net weight only
• Small size
• 1km to 5km LOS distance on air
• High quality and cost COFDM video transmitter
• Aluminum-unibody housings featured, good impact resistance and heat dissipation
• Special design for economical drone

​

3. Parameters

4. Application

As its small size, lightweight and low RF power, the transceiver is widely used in multiple rotor drone, flight test.
