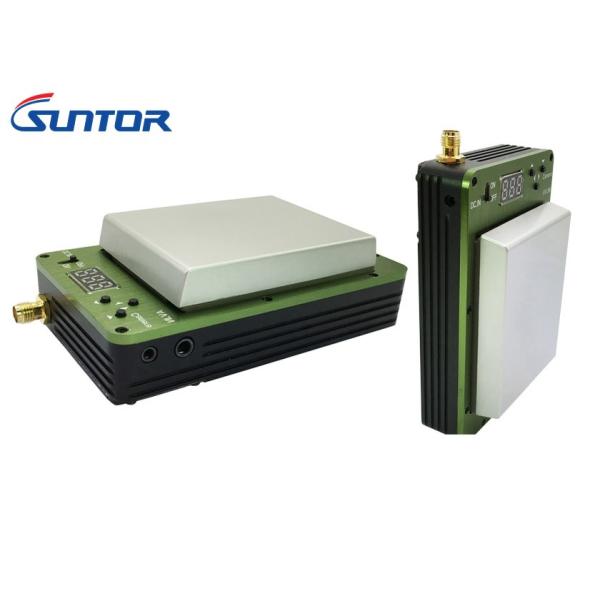

Light VHF Digital Drone Transmitter And Receiver , HD Video Transmitter

Ask Lasest Price
Model Number :	ST6200TPS-SD
Brand Name :	SUNTOR
Certification :	FCC, CE, RoHS
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	1000 set/ month
Delivery Time :	7-15 days
Price :	Negotiation

Add to Cart

Product Details
Company Profile

Light VHF Digital Drone Transmitter And Receiver , HD Video Transmitter

Small light VHF long distance 20km 300mw drone video transmitter

Specification Sheet

User Manual

Intorduction

ST6200TPS-SD this exclusive design mini H.264 wireless video transmitter which adopt the 4th generation mobile communication core COFDM multi-carrier modulation technology, high efficiency innovative H.264 compression encoding, integrated with high light,low power consumption of OLED display control panel, integrating digital modulation,audio and video compression in combo,highly integrated HD move, NLOS digital video transmission equipment

Its advantages small size, lightweight that can transmit high quality video and audio even though there are some building blocks or high-speed mobile shooting.

It’s widely used in UAV aviation filming, ,covert investigation, image monitor and real-time wireless video transmission and more.

Features:

COFDM modulation, H.264 compression
High performance, high capacity power of Li-battery (replaceable)
Small dimension, lightweight, easy to carry, heat dissipation of aluminum case
Support NLOS, high-speed mobile transmission
Highly integrated modular combination design
Using high light and low power consumption of the OLED display control interface
Low delay for whole system working

RF modulation section
Working frequency	300MHz～2GHz adjustable
Output power	100～400mW adjustable
Modulation	COFDM
Channel bandwidth	2/2.5/4/8MHz
Error correction mode	FEC@Viterbi (1/2,2/3,3/4)
Protection interval	1/32,1/16,1/8,1/4
Encryption	Dual AES encryption can be set manually
System section
Standard	MPEG-2
Date rate	1.5Mbps～6Mbps
BER	≤10-6
Transmission distance	Air to ground: 10-30km; LOS: 1-10km; NLOS: >500m
Use	Portable , aerial , close shot secret visit , video transmission in short NLOS distance
Audio video section
Compression formats	H.264/MPEG-2
Video input	PAL/NTSC
Audio input	Left / right
Image clarity	Resolution :720*576,Frames per Second: 25 f/s
Video input port	Standard able 2.5 AV connect port with 5V power output
Audio input port	Standard able 3.5 AV connect port with 5V power output
Other section
Display	LED display function parameters and adjust parameters , boot 3 seconds automatically turn off the display
Battery power supply	DC7.2V/1400mA or 2200mA
External power supply	Standard DC 2.5 connect port, Voltage:DC 7 -- 16 V
Power switch	ON/OFF
Coloer	Pure black , green, black, silver optional
Size	1005818mm (L×W×H)
Weight	175g
